Ford Ecosport: Handles, Locks, Latches and Entry Systems / Removal and Installation - Exterior Rear Door Handle

Ford Ecosport 2014-2026 Service and Repair Manual / Body and Paint / Handles, Locks, Latches and Entry Systems / Removal and Installation - Exterior Rear Door Handle

Removal

NOTE: LH side shown, RH side similar.

Remove the access plug and the exterior rear door handle retaining screw.
1. Remove the access plug from the rear door.
1. Remove the exterior rear door handle retaining screw.

Remove the exterior rear door handle cover.

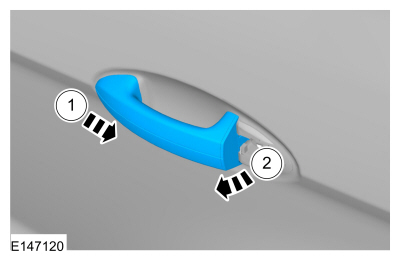

Remove the rear exterior door handle.
1. Pull the exterior rear door handle rearward.
1. Remove the rear exterior door handle.

Installation

To install, reverse the removal procedure.
