Ford Ecosport: Glass, Frames and Mechanisms / Removal and Installation - Driver Door Window Control Switch

Ford Ecosport 2014-2026 Service and Repair Manual / Body and Paint / Glass, Frames and Mechanisms / Removal and Installation - Driver Door Window Control Switch

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: LHD shown, RHD similar.

NOTE: Removal steps in this procedure may contain installation details.

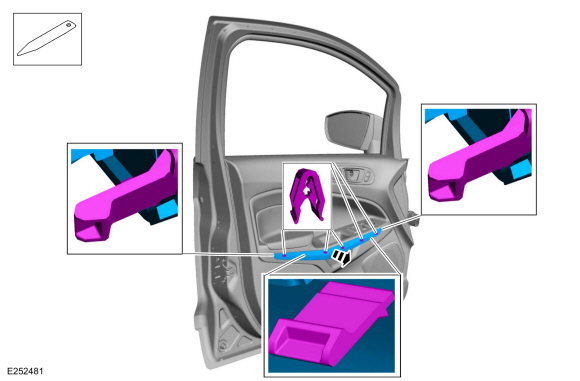

Release the clips and the tabs and remove the armrest side trim panel.
Use the General Equipment: Interior Trim Remover

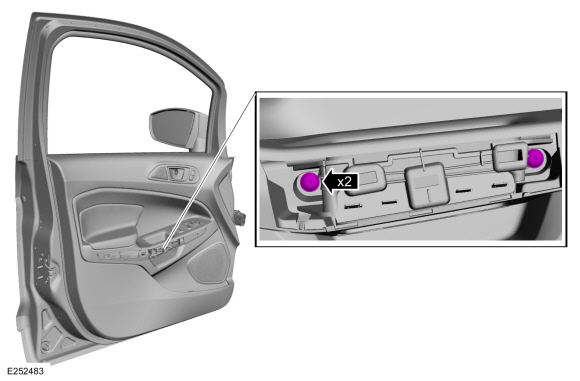

Remove the door trim panel screws.

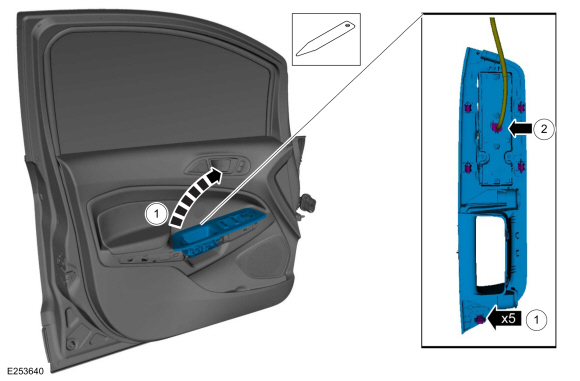

Remove the driver door window control switch and bezel as an assembly.
1. Release the clips.
  Use the General Equipment: Interior Trim Remover
1. NOTE: Typical shown, others similar.
  Disconnect the electrical connector(s)

NOTE: This step is only necessary when installing a new component.

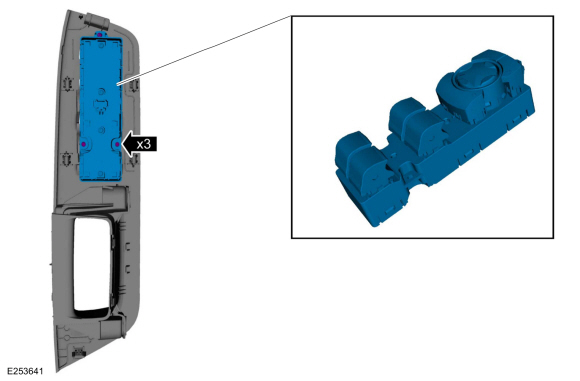

Remove the screws and remove the driver door window control switch.

Installation

To install, reverse the removal procedure.
