Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the passenger glove compartment.
Refer to: Glove Compartment (501-12 Instrument Panel and Console, Removal and Installation).

Remove the glove compartment tray.
- Disconnect the electrical connector.

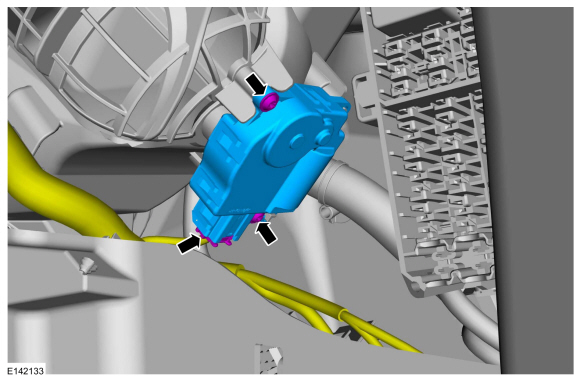

Disconnect the electrical connector, remove the retainers and remove the air inlet door actuator.

Installation

To install, reverse the removal procedure.
